Image Express Utility Lite adalah Software aplikasi projector NEC untuk menampilkan gambar dari komputer atau laptop melalui kabel USB, kabel LAN atau Wireless LAN (menggunakan USB Dongle NEC NP02LM2).
Keuntungan :
• Tidak perlu kabel (Wireless)
• Tidak perlu kabel (Wireless)
• Flexibel
• Software gratis (http://www.nec-pj.com/cgi-bin/ieu_dl_e.cgi?id)
• Support Windows 8
• Support MAC
• Geometric Correction Tool
Wireless

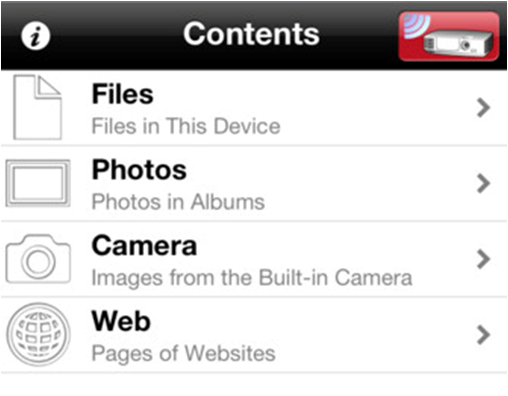

Image Utility for iOS
Wireless
Image Utility Lite adalah sebuah software aplikasi untuk dapat
menampilkan File Gambar atau file dokumen seperti
Word, Excel, Powerpoint dan PDF melalui iPad, iPhone dan iPod Touch ke
projector NEC tipe tertentu secara Wireless LAN. Software ini dapat anda
download secara gratis melalui app store.
Fitur ini memungkinkan anda untuk memperbaiki tampilan dari sudut yang berbeda. Contoh: Corner.
Ada 3
cara koreksi tampilan pada GTC:
- 4
Point Correction- Multi point Correction
- parameter Correction
GTC tersedia dengan menghubungkan kabel USB type B atau LAN/Wireless LAN sebagai tampilan.
PC Control Utility
PC Control Utility adalah Software yang dapat mengontrol projector NEC yang berada dalam satu jaringan LAN.
Keuntungan
•Mematikan semua proyektor dalam waktu yang bersamaan
•Membuat schedule untuk setiap projector
•Menginformasikan
umur lampu
•Pesan
peringatan melalui email
•Software Gratis
•Simpel dan mudah
Input Output Terminal
Fitur - fitur lainnya
Perhitungan jarak tembak M350XS / M300XS / M260XS : Klik Disini
Perhitungan jarak tembak M300WS / M260WS : Klik Disini
Download Brosur : Klik disini
Spesifikasi
| Model Name | M350XS | M300XS | M260XS | M300WS | M260WS | ||
| LCD Panel | 0.63 inch LCD with Micro Lens Array (Aspect Ratio 4:3) Dichroic mirror separation-prism convergence system |
0.59 inch LCD with Micro Lens Array (Aspect Ratio 16:10) Dichroic mirror separation-prism convergence system |
|||||
| Resolution *1 | 1024 x 768 pixels | 1280 x 800 pixels | |||||
| Lens | Digital Zoom / Manual Focus, Zoom ratio 1 to 1.2, Throw ratio 0.47, F2.0, f=6.4mm | ||||||
| Lamp | 265W AC (195W in ECO1) |
230W AC (170W in ECO1) |
180W AC (145W in ECO1 / 90W in ECO2) |
265W AC (195W in ECO1) |
230W AC (170W in ECO1) |
||
| Lamp Life *2 (Eco Mode On / Eco Mode Off) | 3500H / 3000H | 5000H / 4000H | 6000H / 5000H | 3500H / 3000H | 5000H / 4000H | ||
| Image Size (Projection Distance) | 60 to 110 inch (57.3cm to 110.1cm) | 56 to 104 inch (56.9cm to 110.4cm) | |||||
| Colour Reproduction | 10-bit signal processing (1.07 billion colours) (VIEWER, NETWORK : 16.7 million colours) | ||||||
| Light Output *3 *4 | Eco Mode Off | 3500 ANSI lumens |
3000 ANSI lumens |
2600 ANSI lumens |
3000 ANSI lumens |
2600 ANSI lumens | |
| Eco Mode On | ECO1 : 75% | ECO1 : 75% | ECO1 : 80% / ECO2 : 50% | ECO1 : 75% | ECO1 : 75% | ||
| Contrast Ratio (White / Black) *4 | 2000:1 | ||||||
| Maximum Resolution | Analog | UXGA (1600 x 1200) with Advanced AccuBlend | |||||
| Digital | HDTV (1920 x 1080) with Advanced AccuBlend | ||||||
| Scan Rate | Horizontal | 15kHz to 100kHz (RGB : 24kHz or over) | |||||
| Vertical | 50Hz to 120Hz (HDMI : 50Hz to 85Hz) | ||||||
| Keystone Correction | Vertical | Auto / Manual Approx.±Max 20 degrees | |||||
| Input Terminals | 2 Computer Input | 2 D-Sub Mini 15pin | VGA, SVGA, XGA, XGA+, WXGA, WXGA+, SXGA, SXGA+, UXGA RGB : 0.7Vp-p/75Ω H/V Sync : 4.0Vp-p/TTL Level |
||||
| 2 Stereo Mini Jack | Stereo L/R 0.5Vrms/22kΩ or over | ||||||
| 2 Component Input |
2 D-Sub Mini 15pin (Shared with Computer IN) |
Y : 1.0Vp-p/75Ω(with Sync) Cb, Cr (Pb, Pr) : 0.7Vp-p/75Ω Compatible signals : 480i, 480p, 720p, 1080i, 1080p /60Hz, 576i, 576p, 720p, 1080i/50Hz DVD Progressive (50/60Hz) |
|||||
| Audio Input is Shared with Computer IN | Same as Computer IN | ||||||
| 1 HDMI Input | 1 HDMI Type A | VGA, SVGA, XGA, WXGA, SXGA / 480p, 576p, 720p, 1080i, 1080p, DeepColor, LipSync, T.M.D.S. Specification, with H.D.C.P. | |||||
| HDMI support audio | Audio format : LPCM Number of channel : 2ch Sampling Frequency : 32/44.1/48kHz Sampling bit : 16/20/24-bit | ||||||
| 1 S-Video Input | 1 Mini DIN-4pin | Y : 1.0Vp-p/75Ω C : 0.286Vp-p/75Ω |
|||||
| 1 RCA pin x 2 | Stereo L (MONO)/R : 0.5Vrms/22kΩ or over | ||||||
| 1 Video Input | 1 RCA pin | Compatible signals : NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM Compatible Video : 1.0Vp-p/75Ω | |||||
| Audio Input is Shared with S-Video | Same as S-Video | ||||||
| Output Terminals | 1 RGB Output | 1 D-Sub Mini 15pin | Only Computer 1 input can be output | ||||
| 1 Audio Output | 1 Stereo Mini Jack | Stereo L/R 0.5Vrms/22kΩ or over, Selected Audio Signal input can be output | |||||
| USB Port | 1 Type A | USB 2.0 (for USB memory) | |||||
| 1Type B | USB2.0 (for PC) | ||||||
| Wired LAN Port | 1 RJ-45 | 10BASE-T / 100BASE-TX | |||||
| Wireless LAN (USB Port) | 1 Type A | IEEE 802.11 b/g/n (Optional USB Wireless LAN Unit required) | |||||
| Control Terminals | PC Control | 1 D-sub 9pin | RS-232C | ||||
| Built-In Speaker | 10W Monaural | ||||||
| Quietness (Eco Mode On/ Eco Mode Off) | 30dB / 36dB | 29dB / 35dB | 29dB / 35dB | 30dB / 36dB | 29dB / 35dB | ||
| Environment | Operational Temperatures | 5°C to 40°C ([ECO MODE] selected automatically at 35°C to 40°C), 20% to 80% Humidity (Non-Condensing) |
|||||
| Storage Temperatures | -10°C to 50°C, 20% to 80% Humidity (Non-Condensing) | ||||||
| Power Requirement | 100 to 240V AC, 50Hz/60Hz | ||||||
| Input Current | 3.9A - 1.7A | 3.4A - 1.5A | 2.8A - 1.2A | 3.9A - 1.7A | 3.4A - 1.5A | ||
| Power Consumption | Eco Mode Off | 100 - 130V | 358W | 311W | 248W | 358W | 311W |
| 200 - 240V | 343W | 302W | 239W | 343W | 302W | ||
| Eco1 Mode | 100 - 130V | 271W | 239W | 198W | 271W | 239W | |
| 200 - 240V | 264W | 236W | 193W | 264W | 236W | ||
| Eco2 Mode | 100 - 130V | - | - | 138W | - | - | |
| 200 - 240V | - | - | 136W | - | - | ||
| Standby Mode | 100 - 130V / 200 -240V | 8W | |||||
| Power-saving Mode | 100 - 130V | 0.2W | |||||
| 200 - 240V | 0.4W | ||||||
| Calorific Value | 100 - 130V | 1222BTU (Max) | 1061BTU (Max) | 846BTU (Max) | 1222BTU (Max) | 1061BTU (Max) | |
| 200 - 240V | 1170BTU (Max) | 1030BTU (Max) | 816BTU (Max) | 1170BTU (Max) | 1030BTU (Max) | ||
| Dimensions (W x H x D) | 398mm x 140mm x 309mm (Not Including Protrusions） | ||||||
| Weight | 4.0kg | ||||||
